Draftings

Alice in Wonderland - Birmingham Children’s Theatre Front Elevation View of Sloss Furnaces Drafted in Vectorworks — Alice in Wonderland - Birmingham Children’s Theatre
Front Elevation View of Sloss Furnaces
Drafted in Vectorworks

Alice in Wonderland - Birmingham Children’s Theatre Side Elevation View of Sloss Furnaces Drafted in Vectorworks — Alice in Wonderland - Birmingham Children’s Theatre
Side Elevation View of Sloss Furnaces
Drafted in Vectorworks

Alice in Wonderland - Birmingham Children’s Theatre Front Elevations of Full Set on the Sloss Furnaces Front ElevationDrafted in Vectorworks — Alice in Wonderland - Birmingham Children’s Theatre
Front Elevations of Full Set on the Sloss Furnaces Front Elevation
Drafted in Vectorworks

Alice in Wonderland - Birmingham Children’s Theatre SketchUp Model used to help visualize the cubed arch in 3D to help figure out how to breakup the arch into wedge piecesDrafted in SketchUp — Alice in Wonderland - Birmingham Children’s Theatre
SketchUp Model used to help visualize the cubed arch in 3D to help figure out how to breakup the arch into wedge pieces
Drafted in SketchUp

Alice in Wonderland - Birmingham Children’s Theatre Drafting splitting the arch up into buildable wedge pieces.Drafted in Vectorworks — Alice in Wonderland - Birmingham Children’s Theatre
Drafting splitting the arch up into buildable wedge pieces.
Drafted in Vectorworks

Alice in Wonderland - Birmingham Children’s Theatre Drafting of all of the arch buildable pieces.Drafted in Vectorworks — Alice in Wonderland - Birmingham Children’s Theatre
Drafting of all of the arch buildable pieces.
Drafted in Vectorworks

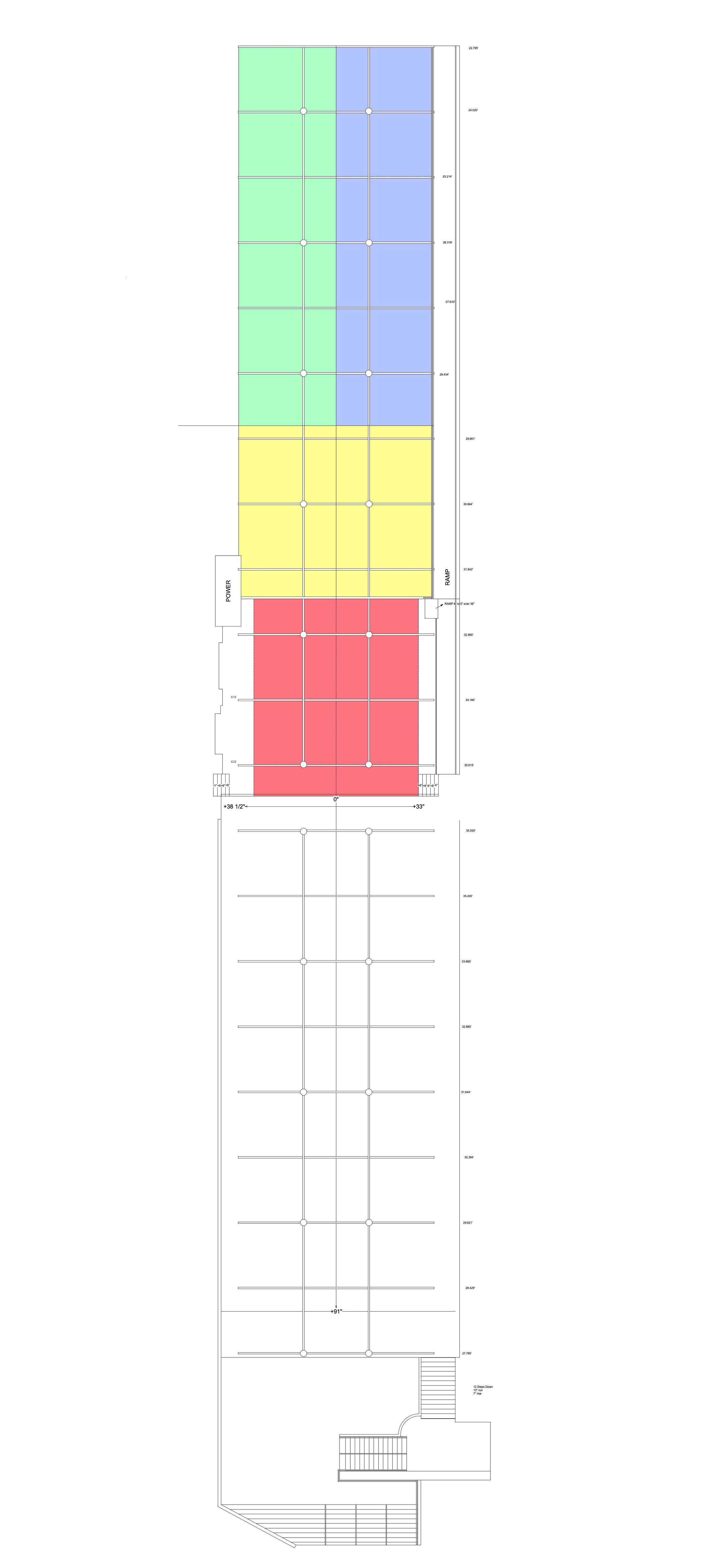

Peter Pan - Birmingham Children’s TheatrePlatform layout as well as draftings of the custom built platforms for the Apron Platforms.Drafted in Vectorworks — Peter Pan - Birmingham Children’s Theatre
Platform layout as well as draftings of the custom built platforms for the Apron Platforms.
Drafted in Vectorworks

Peter Pan - Birmingham Children’s TheatreConstruction Draftings for the stud-walls that the Apron Platforms sat on.Drafted in Vectorworks — Peter Pan - Birmingham Children’s Theatre
Construction Draftings for the stud-walls that the Apron Platforms sat on.
Drafted in Vectorworks

The Hundred Dresses- Birmingham Children’s Theatre3D Draftings of the Platform layout. Drafted in Vectorworks — The Hundred Dresses- Birmingham Children’s Theatre
3D Draftings of the Platform layout.
Drafted in Vectorworks

The Hundred Dresses- Birmingham Children’s Theatre3D Draftings of interior of the schoolhouse scenic piece. Also shows relation to turntable.Drafted in Vectorworks — The Hundred Dresses- Birmingham Children’s Theatre
3D Draftings of interior of the schoolhouse scenic piece. Also shows relation to turntable.
Drafted in Vectorworks

Sword in the Stone - Birmingham Children’s TheatreConstruction Drafting for stud-walls for some ramps.Drafted in Vectorworks — Sword in the Stone - Birmingham Children’s Theatre
Construction Drafting for stud-walls for some ramps.
Drafted in Vectorworks

20’ Turntable - Birmingham Children’s TheatreDrafting of 2x4 framing layout as well as the line breaks for the 8 Pie Pieces (red ink) and the center-point. Drafted in Vectorworks — 20’ Turntable - Birmingham Children’s Theatre
Drafting of 2x4 framing layout as well as the line breaks for the 8 Pie Pieces (red ink) and the center-point.
Drafted in Vectorworks

Alice in Wonderland - Birmingham Children’s TheatreThis production was performed at Birmingham’s Historic Sloss Furnaces. We did the show in an old iron casting shed, so I had to make draftings to accurately prepare for the production and for the De… — Alice in Wonderland - Birmingham Children’s Theatre
This production was performed at Birmingham’s Historic Sloss Furnaces. We did the show in an old iron casting shed, so I had to make draftings to accurately prepare for the production and for the Design team to utilize. I took measurements with tape measures as well as a laser-point measuring device and drafted the space from scratch.
Drafted in Vectorworks
